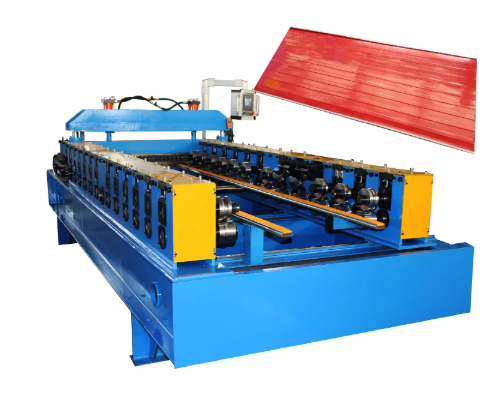

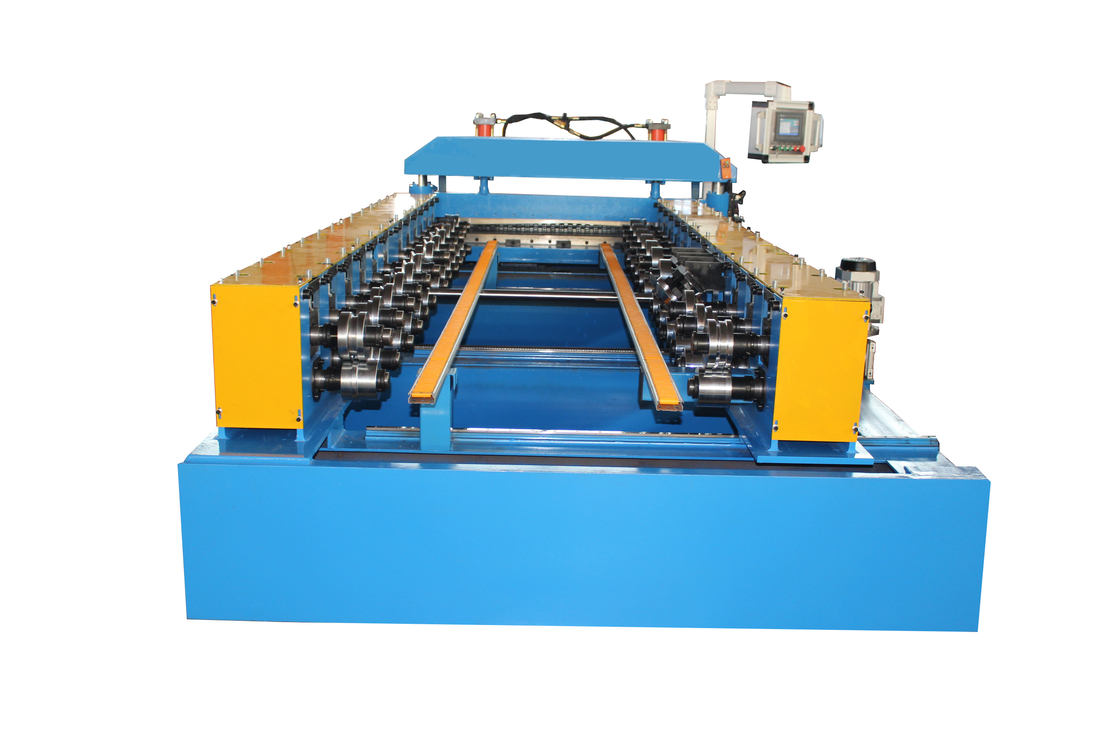

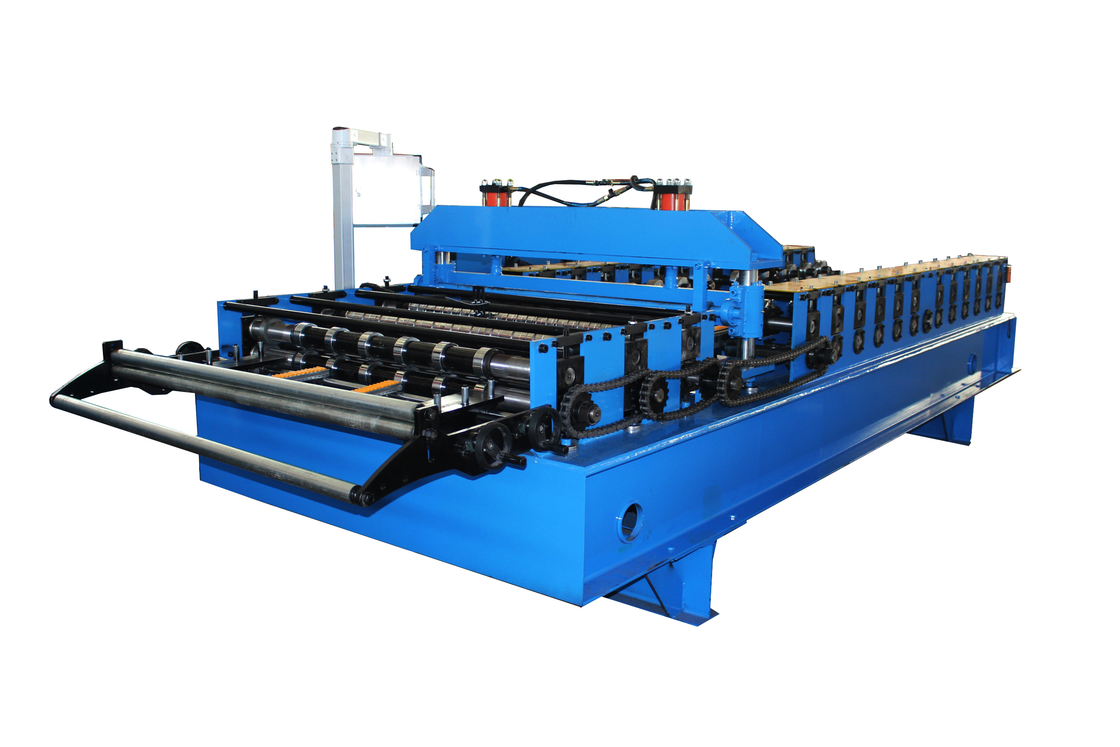

EPS Sandwich Bottom Panel Production Line With Cheap Price

EPS Sandwich Bottom Panel Production Line With Cheap Price

EPS sandwich panel production line

cheap sandwich panel machine

roll forming sandwich panel line

Место происхождения:

КИТАЙ

Фирменное наименование:

FMS

Сертификация:

CE

Номер модели:

Сэндвич-панельная рулочная машина

Свяжитесь с нами
Запросите цитату
Подробная информация о продукции
Отрежьте режим:
Гидравлический формировать после резать
Диаметр вала:
70 мм или как ваше требование
Материал валов:
Высококачественная кованая сталь 45#
Лезвие вырезывания:
Сталь прессформы CR12 с погашенной обработкой
Формирование скорости:
8-15 м/мин
Режущий лезвий материал:
Cr12MOV, термообработка
Источник питания:
380V, 3 УЧАСТОК, 50HZ
Материал вала:
Высокий класс 45# сталь, диаметр 70 мм
Толщина:
0,3-0,8 мм
Формирование шагов:
13 станций
Власть:
5,5 кВт
Материал ширина:
1200 мм
Выделить:

EPS sandwich panel production line

,

cheap sandwich panel machine

,

roll forming sandwich panel line

Условия оплаты и доставки
Количество мин заказа
1Set
Цена
negotiable
Упаковывая детали
Нагой с полиэтиленовой пленкой.
Время доставки
45 дней worl
Условия оплаты
T/T, L/C.
Поставка способности
20 комплектов в месяц
Описание продукта

EPS Sandwich Bottom Panel Production Line With Cheap Price



The double laye roll forming machine has the following characteristics:

1. Advanced technology: the line adopts continuous coil production after cold bending to determine the precision of the long cutting parts forming shape rules length accurate consistency.Good appearance and high strength of molding workpiece.

2. High productivity: this line only needs 2-3 people to operate, with simple operation and low labor intensity. The production
speed of this line is adjustable from 8to 15 meters per minute.
3. High reliability: the main components of the hydraulic, pneumatic and electrical systems of this line all adopt imported
high-quality components with stable performance and high reliability materials applicable to high technical parameters.
EPS sandwich panel production line is used for continuous production of sandwich panels, double side is flexible material with polyurethane or Phenolic inside . The main products of this line are exterior wall insulation composite panel and duct of central air-conditioner.



Specification

Warranty of core components 1 Year
Voltage 380V 50Hz
Weight 3500kg
Production Capacity 8-15m/min
Power 5.5Kw
Dimension(L*W*H) about 6200*1200*1000mm
Applicable Material GI,PPGI (According to customer requirements)
Production Capacity 8-15M/Min
Voltage 380V.50HZ.3Phase
Roll material 45# high grade steel
Frame thickness 16mm
Core Components Motor, PLC
Roll stations 12
Rolling thinckness 0.3-0.7mm

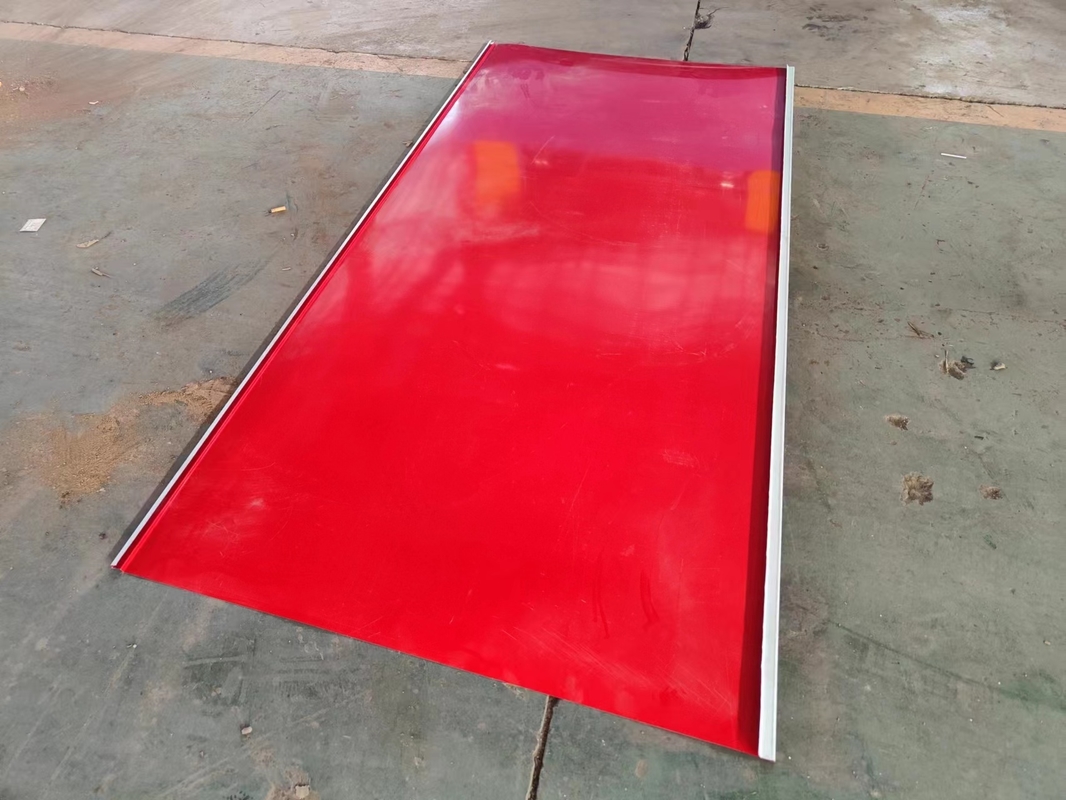

EPS Sandwich Bottom Panel Production Line With Cheap Price 0EPS Sandwich Bottom Panel Production Line With Cheap Price 1



Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation


Payment terms
40% in advance as down payment
60% is paid before the shipment is processed



Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 35 days after the down payment is received.


RFQ

1. Does one machine can only produce one style panel profile?

Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of panels.

2. What can you do if the machine broken?
Our machine's warranty period is 12 months,if the broken parts can't repair,we can send the new parts replace the broken parts ,but you need pay the express cost yourself.if after warranty period,we can through negotiation for to solve the problems,and we supply the technical support for the whole life of the equipment.

3. Can you be responsible for transport?
Yes,please tell me the destination port or address.we have rich experience in transport.

4. Are you manufacturer or trading company?
We are manufacturer and trading company .

5. Do you provide customized?
Sure, we can design the machine according to the requirement and profile drawing you provide. Our engineers can offer the best professional solution to our worldwide clients.

6. How can I trust you that machines pasted testing running before shipping?
1) We record the testing video for your reference. Or,
2) We welcome you visit us and test machine by yourself in our factory.
